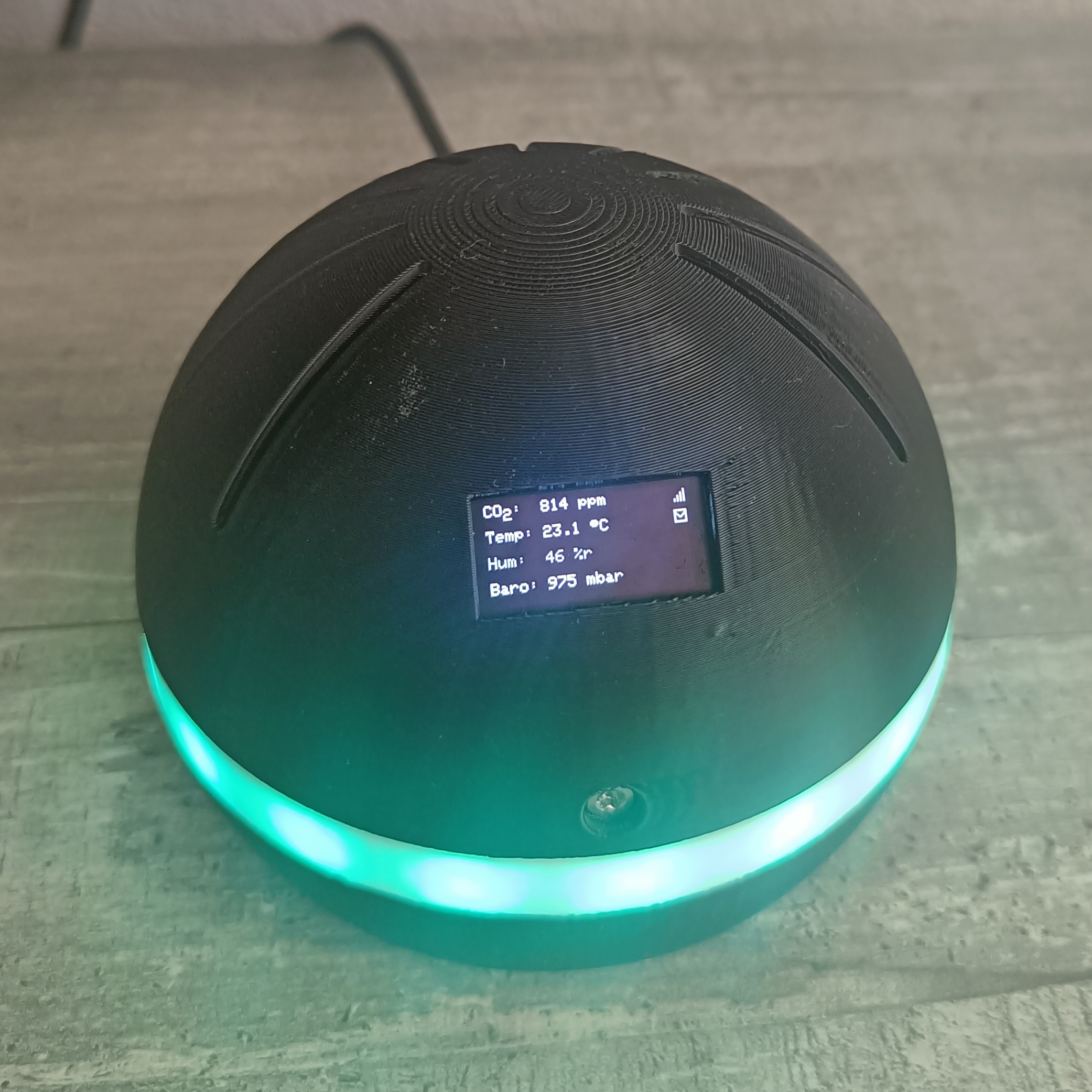

Luftikus - Raumklimaüberwachung

// ---------------------------------------------------------------------------------------------100
// Title:    Luftikus - V1
// Purpose:  Monitor indoor air quality using CO₂, temperature, humidity, and pressure sensors.
// Author:   Simon "Saasi" Burgener
// Created:  Jan - May 2025

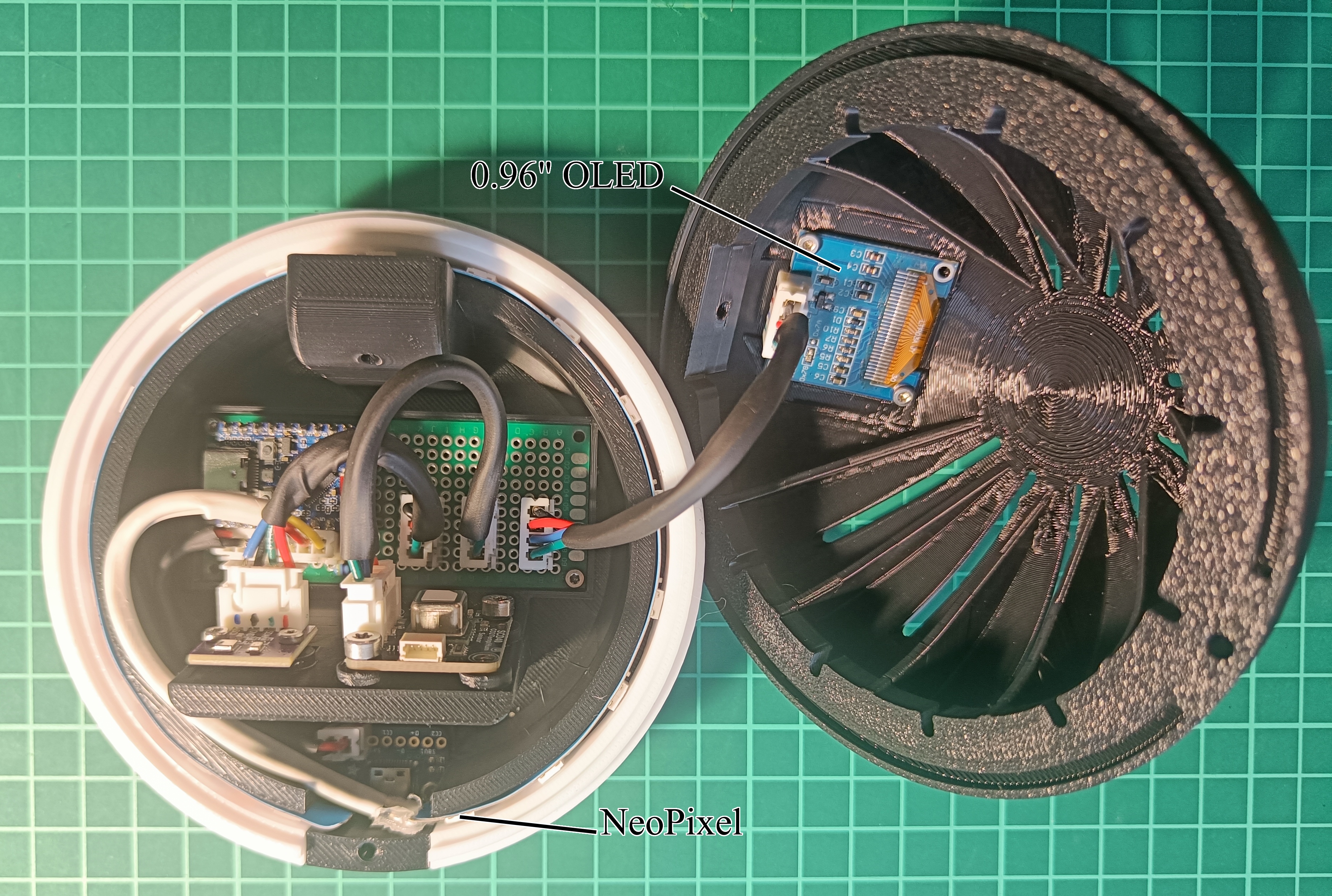

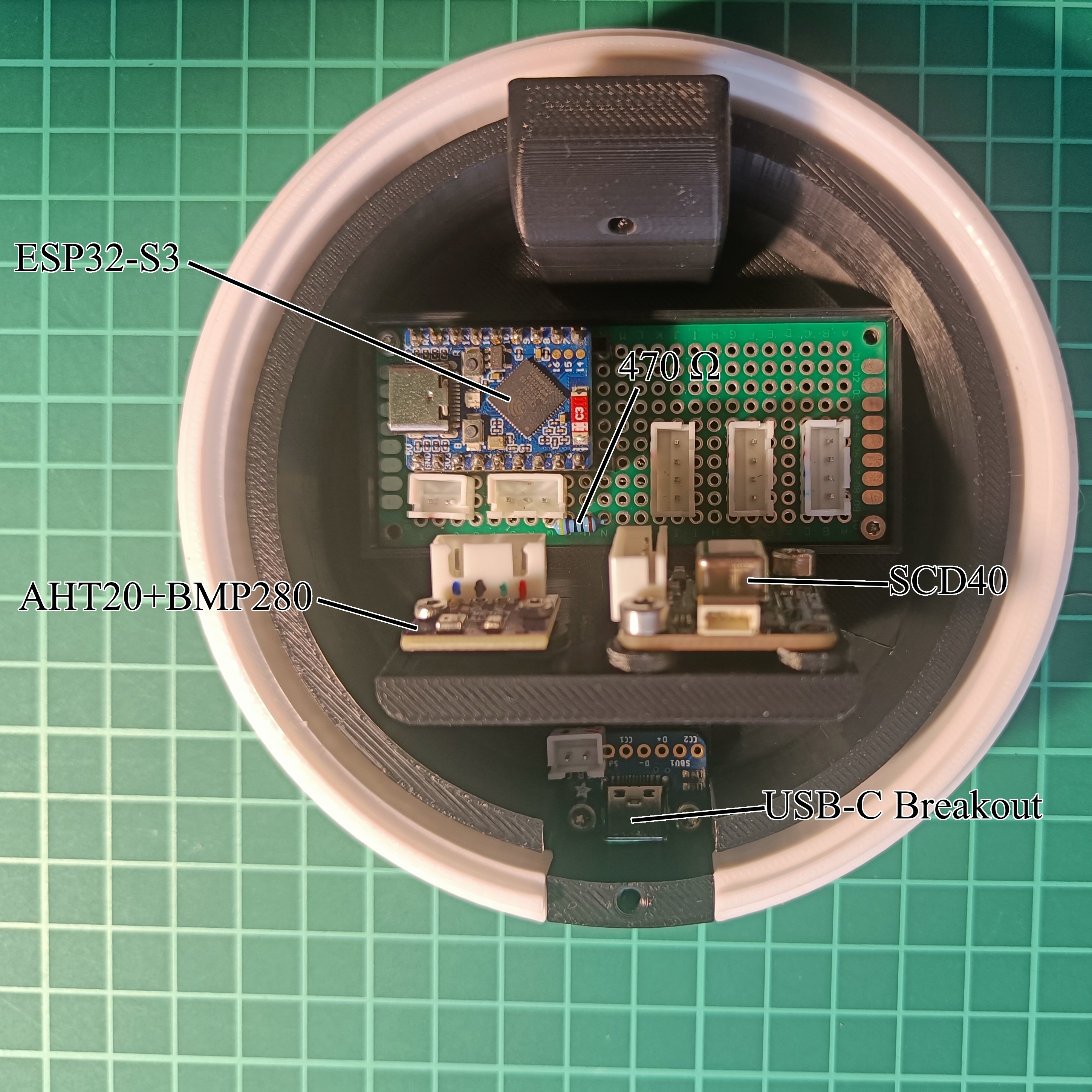

// Hardware: ESP32, AHT20, BMP280, SCD40, SSD1306 OLED, NeoPixel (WS2812)
// Notes:    - Sends averaged data every 10 seconds to a remote server
//           - Displays live readings and WiFi status on OLED
//           - Visual feedback via NeoPixel color gradient based on CO₂ level
// ---------------------------------------------------------------------------------------------100

// libraries -----------------------------------------------------------------------------------100
#include  // I²C library / SDA+SCL communication
#include  // AHT20: temperature, rel. humidity
#include  // BMP280: air pressure, temperature
#include  // SCD40: CO2 (NDIR), temperatur, rel. humidity
#include  // LED strip
#include  // 0.98" OLED
#include  // graphics

#include  // for SSID and PW input
#include  // connection to wifi
#include  // send data via wlan

// global variables ----------------------------------------------------------------------------100

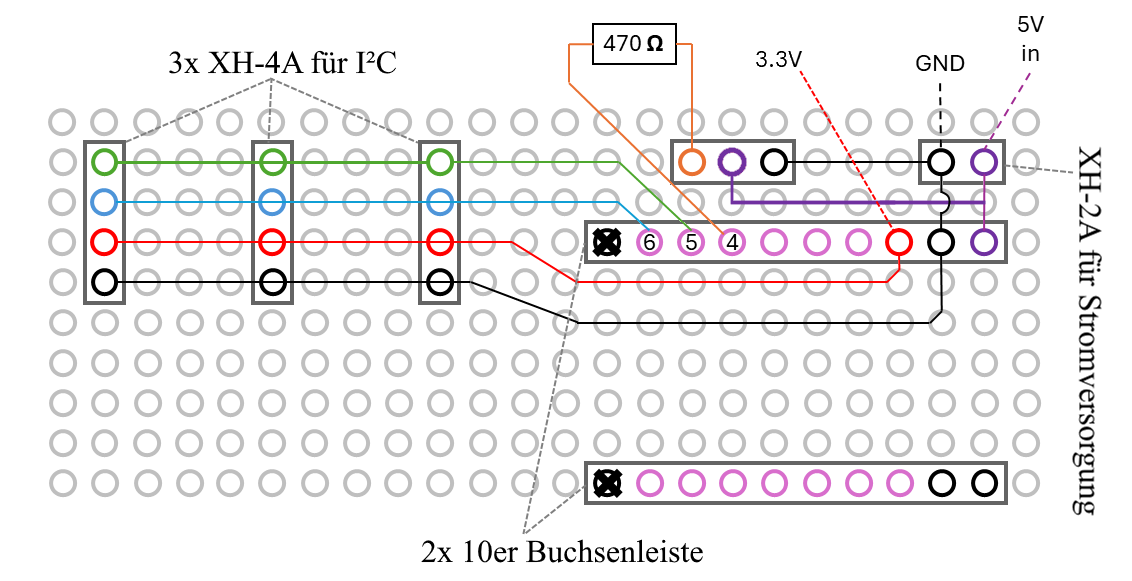

// I²C connection
#define SDA_PIN       5 // I²C pin: SDA (green)
#define SCL_PIN       6 // I²C pin: SCL (blue)

// neopixel
#define NEOPIXEL_PIN  4
#define NUMPIXELS     17 // number of neopixels

// 0.98" OLED
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET    -1 // reset-pin not connected (-1)

// runtime variables
unsigned long previousMillis = 0;
const long interval = 1000;

// Variables to store sensor values
float temp_aht = 0.0; // (measured value)_(sensor)
float hum_aht = 0.0;
float temp_bmp = 0.0;
float baro_bmp = 0.0;
float CO2_scd = 0.0;
float temp_scd = 0.0;
float hum_scd = 0.0;

float temp_avg = 0.0; // average over all measured temperatures (3 sensors)
float hum_avg = 0.0; // average over all measured humidities (2 sensors)

float temp_corr = 0.0; // temperatur offset
float hum_corr = 0.0; // humidity offset
float CO2_corr_m = 1.00; // CO2 correction facrtor

// export variables
const int nrVal = 10; // number of measured for 1 mean
int bufferIndex = 0; // counter for buffers

float co2Buffer = 0.0; // buffers: add up 10 values
float tempBuffer = 0.0;
float humBuffer = 0.0;
float pressBuffer = 0.0;

float avgCO2 = 0.0; // exported values
float avgTemp = 0.0;
float avgHum = 0.0;
float avgPress = 0.0;

// adress (URL) off the upload php file
const char* serverURL = "https://server.add/upload_data.php";
int httpCode = 0;
bool iscon = false;

// objects -------------------------------------------------------------------------------------100
Adafruit_AHTX0 aht;
Adafruit_BMP280 bmp;
SCD4x scd40;
Adafruit_NeoPixel strip(NUMPIXELS, NEOPIXEL_PIN, NEO_GRB + NEO_KHZ800);
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

// I²C-adresses --------------------------------------------------------------------------------100
const uint8_t AHT20_ADDR = 0x38; // 0x38: AHT20 (temp, hum)
const uint8_t BMP280_ADDR = 0x77; // 0x77: BMP280 (baro, temp)
// SCD40: 0x62 (CO₂, hum, temp)
const uint8_t DISPLAY_ADDR = 0x3C; // 0x3C: 0.98" OLED I²C display

// Neopixel ------------------------------------------------------------------------------------100
#define TRAIL_FADE  0.95 // neopixel fading rate (1: no fading, 0: instant fading)

unsigned long lastUpdate = 0;
int currentPos = 0;

// RGB-color of current neopixel
float red[NUMPIXELS];
float green[NUMPIXELS];
float blue[NUMPIXELS];

// color changing limits (ppm CO₂)
const int CO2_GREEN_MAX = 1000;
const int CO2_YELLOW_MAX = 1500;
const int CO2_RED_MAX = 2500;
const int CO2_LILA_MAX = 5000;



// Bitmap --------------------------------------------------------------------------------------100
// wifi on [8x10]
const uint8_t wifi_on_icon [] PROGMEM = {
  0b00000000,
  0b00000000,
  0b00000001,
  0b00000001,
  0b00000101,
  0b00000101,
  0b00010101,
  0b00010101,
  0b01010101,
  0b01010101
};

const uint8_t wifi_off_icon [] PROGMEM = {
  0b10001000,
  0b01010000,
  0b00100001,
  0b01010001,
  0b10001101,
  0b00000101,
  0b00010101,
  0b00010101,
  0b01010101,
  0b01010101
};

// creeper [8x10]
const uint8_t creeper_icon [] PROGMEM = {
  0b11111111,
  0b10011001,
  0b10011001,
  0b11100111,
  0b11000011,
  0b01011010,
  0b01111110,
  0b11111111,
  0b11111111,
  0b11100111
};

// envelope [8x10]
const uint8_t mail_icon [] PROGMEM = {
  0b11111111,
  0b10000001,
  0b11000011,
  0b10100101,
  0b10011001,
  0b10000001,
  0b10000001,
  0b11111111,
  0b00000000,
  0b00000000
};

// empty [8x10]
const uint8_t empty_icon [] PROGMEM = {
  0b11111111,
  0b10000001,
  0b11000011,
  0b10100101,
  0b10011001,
  0b10000001,
  0b10000001,
  0b11111111,
  0b00000000,
  0b00000000
};

// check mark (Häkchen) [6x8]
const uint8_t checkmark_bitmap [] PROGMEM = {
  0b00000001,
  0b00000010,
  0b00000100,
  0b00001000,
  0b00010000,
  0b10100000,
  0b01000000,
  0b00000000
};

// funktions I ---------------------------------------------------------------------------------100
void blinkColor(uint32_t color, int times, int delayTime = 300) {
  for (int i = 0; i < times; i++) {
    strip.fill(color);
    strip.show();
    delay(delayTime);
    strip.clear();
    strip.show();
    delay(delayTime);
  }
} // end blinkColor

void drawVerticalText(const char* text, int x, int yStart, int lineSpacing = 8) {
  for (int i = 0; text[i] != '\0'; i++) {
    display.setCursor(x, yStart + i * lineSpacing);
    display.write(text[i]);
  }
}

// setup loop ##################################################################################100
void setup() {
  Serial.begin(115200); // start connection to PC
  delay(1000);

  Serial.println("");
  Serial.println("<<< starting >>>");

  // start I²C communication
  Wire.begin(SDA_PIN, SCL_PIN);
  delay(250);

  // optical feedback --------------------------------------------------------------------------100
  // start/prepare NeoPixels
  strip.begin();
  strip.setBrightness(40); // set base brightness (0-255)
  strip.clear(); // turn off all neopixels
  strip.show();
  delay(500);
  blinkColor(strip.Color(255, 255, 255), 1);  // wight light on/off

  // display
  if (!display.begin(SSD1306_SWITCHCAPVCC, DISPLAY_ADDR)) {  // 0x3C ist meist I2C-Adresse
    Serial.println(F("OLED nicht gefunden!"));
    for (;;); // Hängen bleiben
  }
  display.setRotation(2); // upside down rotation (180°)
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("< Luftikus          >"));
  display.println(F("<------------------->"));
  display.display();
  delay(500);

  // initialize sensors ------------------------------------------------------------------------100
  if (!aht.begin(&Wire, AHT20_ADDR)) {
    display.println(F(" [x] AHT20 - ERROR"));
  } else {
    display.print(F(" ["));
    display.drawBitmap(12, display.getCursorY(), checkmark_bitmap, 6, 8, SSD1306_WHITE);
    display.setCursor(18, display.getCursorY());
    display.println(F("] AHT20"));
  }
  display.display();

  if (!bmp.begin(BMP280_ADDR)) {
    display.println(F(" [x] BMP280 - ERROR")); // F() saves string in FLASH and not RAM
  } else {
    display.print(F(" ["));
    display.drawBitmap(12, display.getCursorY(), checkmark_bitmap, 6, 8, SSD1306_WHITE);
    display.setCursor(18, display.getCursorY());
    display.println(F("] BMP280"));
  }
  display.display();

  if (scd40.begin() == false) { // default I2C address: 0x61
    display.println(F(" [x] SCD40 - ERROR"));
  }  else {
    display.print(F(" ["));
    display.drawBitmap(12, display.getCursorY(), checkmark_bitmap, 6, 8, SSD1306_WHITE);
    display.setCursor(18, display.getCursorY());
    display.println(F("] SCD40"));
  }
  display.display();
  delay(1000);


  // WLAN setup --------------------------------------------------------------------------------100
  display.clearDisplay();
  display.setCursor(0, 0);
  display.println(F(" WLAN setup"));
  display.println(F("<------------------->"));
  display.display();

  blinkColor(strip.Color(0, 0, 255), 2);  // blue LEd blinking 3x

  WiFiManager wm; // start wifi-manager
  //wm.resetSettings(); // delete all known SSIDs (just for testing)

  // check for known/saved SSIDs
  WiFi.mode(WIFI_STA);
  WiFi.begin();

  unsigned long startAttempt = millis();
  bool connected = false;

  strip.fill(strip.Color(0, 0, 255));
  strip.show();
  display.println(F("Teste bek. SSIDs ..."));
  display.println(F(" > 10s"));
  display.display();

  // wait untill connected or timeout
  while (millis() - startAttempt < 10000) {
    if (WiFi.status() == WL_CONNECTED) {
      connected = true;
      iscon = true;
      break;
    }
    delay(500);
  }

  if (connected) {
    display.println(F(""));
    display.println(WiFi.SSID()); // show SSID / IP
    display.println(WiFi.localIP());
    display.display();
    blinkColor(strip.Color(0, 255, 0), 3);
    delay(2000);
  } else {
    // no known SSID works
    display.clearDisplay();
    display.setCursor(0, 0);
    display.println(F("Neue SSID:"));
    display.println(F(" WLAN: Luftikus-Setup"));
    display.println(F(" PW:   messtechnik"));
    strip.fill(strip.Color(128, 0, 128));
    display.display();
    strip.show();

    unsigned long setupStart = millis();
    wm.setTimeout(180); // 3 minutes open Setup-window

    bool res = wm.autoConnect("Luftikus-Setup", "messtechnik");

    if (res && WiFi.status() == WL_CONNECTED) {
      // if connected
      iscon = true;
      blinkColor(strip.Color(0, 255, 0), 3); // 3x green
      display.println(F("WLAN verbunden!"));
      display.println(WiFi.SSID());
      display.println(WiFi.localIP());
      display.display();
      delay(1000);
    } else {
      // in not connected → offline
      blinkColor(strip.Color(255, 0, 0), 3); // 3x red
      display.clearDisplay();
      display.println(F("Setup fehlgeschlagen."));
      display.println(F("Starte offline."));
      display.display();

      WiFi.disconnect(true);
      WiFi.mode(WIFI_OFF);
      delay(1000);
    }
  }

} // end of setup loop
// #############################################################################################100

// runnung loop ################################################################################100
void loop() {
  unsigned long currentMillis = millis(); // save current running time in ms
  if (currentMillis - previousMillis >= interval) { // passed time since last loop
    previousMillis = currentMillis;

    // measured data ---------------------------------------------------------------------------100
    // Read sensor values
    sensors_event_t humidity, temp;
    aht.getEvent(&humidity, &temp);
    temp_aht = temp.temperature;
    hum_aht = humidity.relative_humidity;

    temp_bmp = bmp.readTemperature();
    baro_bmp = bmp.readPressure() / 100.0F;

    if (scd40.readMeasurement()) {
      CO2_scd = scd40.getCO2();
      CO2_scd = CO2_corr_m * CO2_scd;
      temp_scd = scd40.getTemperature();
      hum_scd = scd40.getHumidity();
    }

    // calculate average and offset-correction
    temp_avg = ((temp_aht + temp_bmp + temp_scd) / 3.0) + temp_corr;
    hum_avg = ((hum_aht + hum_scd) / 2.0) + hum_corr;

    // buffer adding up
    co2Buffer = co2Buffer + CO2_scd;
    tempBuffer = tempBuffer + temp_avg;
    humBuffer = humBuffer + hum_avg;
    pressBuffer = pressBuffer + baro_bmp;
    bufferIndex++;

    // Neopixel display ------------------------------------------------------------------------100
    uint8_t r, g, b;
    getCO2Color(CO2_scd, r, g, b);
    // set color on current NeoPixel position (x out of 17)
    red[currentPos] = r;
    green[currentPos] = g;
    blue[currentPos] = b;

    // show pixel an add fading to old ones
    for (int i = 0; i < NUMPIXELS; i++) {
      // Fade
      red[i] *= TRAIL_FADE;
      green[i] *= TRAIL_FADE;
      blue[i] *= TRAIL_FADE;

      strip.setPixelColor(i, (int)red[i], (int)green[i], (int)blue[i]);
    }
    strip.show();

    currentPos = (currentPos + 1) % NUMPIXELS;

    // export data -----------------------------------------------------------------------------100
    if (bufferIndex >= nrVal) {
      float avgCO2 = co2Buffer/10.0;
      float avgTemp = tempBuffer/10.0;
      float avgHum = humBuffer/10.0;
      float avgPress = pressBuffer/10.0;

      sendToServer(avgCO2, avgTemp, avgHum, avgPress);
      bufferIndex = 0; // zurücksetzen
      co2Buffer = tempBuffer = humBuffer = pressBuffer = 0.0;
      avgCO2 = avgTemp = avgHum = avgPress = 0.0;
    }

    // display data on OLED --------------------------------------------------------------------100
    display.clearDisplay();
    display.setCursor(0, 0);
    display.print("CO");
      // lower case 2 in CO₂
      display.setCursor(display.getCursorX(), display.getCursorY() + 3); // etwas tiefer
      display.print("2");display.setCursor(18, 0); display.print(":  ");
    display.print(CO2_scd, 0); display.println(" ppm   ");
    display.println(" ");
    display.print("Temp: "); display.print(temp_avg, 1); display.print(" "); display.print((char)247); display.println("C   ");
    display.println(" ");
    display.print("Hum:  "); display.print(hum_avg, 0); display.println(" %r   ");
    display.println(" ");
    display.print("Baro: "); display.print(baro_bmp, 0); display.println(" mbar   ");

    if (httpCode == 200) {
      display.drawBitmap(120, 15, mail_icon, 8, 10, SSD1306_WHITE);
    } else {
      display.drawBitmap(120, 15, creeper_icon, 8, 10, SSD1306_WHITE);
    }

    if (iscon) {
      display.drawBitmap(120, 0, wifi_on_icon, 8, 10, SSD1306_WHITE);
    } else {
      display.drawBitmap(120, 0, wifi_off_icon, 8, 10, SSD1306_WHITE);
    }
    display.display();

    // seriell output --------------------------------------------------------------------------100
    Serial.print("Temp: "); Serial.print(temp_aht); Serial.print(" | ");
      Serial.print(temp_bmp); Serial.print(" | ");
      Serial.println (temp_scd);
    Serial.print("Feuchte: "); Serial.print(hum_aht); Serial.print(" | ");
      Serial.println(hum_scd);
    Serial.print("Druck: "); Serial.print(baro_bmp); Serial.println(" mbar");
    Serial.print("CO2: "); Serial.print(CO2_scd); Serial.println("ppm");

    Serial.print("Free heap: "); Serial.println(ESP.getFreeHeap());
    Serial.print("http code: "); Serial.println(httpCode);
    Serial.print("iscon:     "); Serial.println(iscon);

    Serial.println("");
  }

} // end of running loop
// #############################################################################################100

// functions -----------------------------------------------------------------------------------100
void getCO2Color(int ppm, uint8_t &r, uint8_t &g, uint8_t &b) {
  if (ppm == 0) {
    // Sensor noch nicht bereit → schwaches Blau
    r = 0;
    g = 0;
    b = 100;
  }
  else if (ppm <= CO2_GREEN_MAX) {
    r = 0;
    g = 255;
    b = 50;
  }
  else if (ppm <= CO2_YELLOW_MAX) {
    float t = (ppm - CO2_GREEN_MAX) / (float)(CO2_YELLOW_MAX - CO2_GREEN_MAX); // 0–1
    r = (uint8_t)(255 * t);
    g = 255;
    b = 0;
  }
  else if (ppm <= CO2_RED_MAX) {
    float t = (ppm - CO2_YELLOW_MAX) / (float)(CO2_RED_MAX - CO2_YELLOW_MAX); // 0–1
    r = 255;
    g = (uint8_t)(255 * (1.0 - t));
    b = 0;
  }
  else if (ppm <= CO2_LILA_MAX) {
    float t = (ppm - CO2_RED_MAX) / (float)(CO2_LILA_MAX - CO2_RED_MAX); // 0–1
    r = 255;
    g = 0;
    b = (uint8_t)(255 * t); // von rot zu lila
  }
  else {
    // MAK-Wert überschritten → tiefes Lila
    r = 180;
    g = 0;
    b = 255;
  }
}

void sendToServer(float co2, float temp, float hum, float press) {
  if (WiFi.status() == WL_CONNECTED) {
    iscon = true;
    HTTPClient http;
    String url;
    url.reserve(200);  // Heap-Fragmentierung vermeiden
    url += serverURL;
    url += "?co2=" + String(co2, 1);
    url += "&temp=" + String(temp, 1);
    url += "&hum=" + String(hum, 1);
    url += "&press=" + String(press, 1);

    http.begin(url);
    httpCode = http.GET();
    String payload = http.getString();

    Serial.print("Sende Daten: ");
    Serial.println(url);
    Serial.print("Antwort-Code: ");
    Serial.println(httpCode);
    Serial.print("Antwort: ");
    Serial.println(payload);

    http.end();
  } else {
    iscon = false;
    httpCode = 0;
    display.drawBitmap(120, 0, wifi_off_icon, 8, 10, SSD1306_WHITE);
    display.display();
    Serial.println("WLAN getrennt!");
  }
}
